UI Kit Builder Integration

UI Kit Builder streamlines integrating CometChat’s Flutter UI Kit into your cross-platform app. Design the experience visually, export platform-ready assets, and connect them to your Flutter project with just a few steps.

Prerequisites

Before running this project, make sure you have:

Flutter SDK (stable channel) with Dart 3+
macOS, Windows, or Linux with Flutter tooling (Android Studio, VS Code, or IntelliJ)
For iOS builds: Xcode, CocoaPods, and an iOS 13+ simulator or device
For Android builds: Android Studio and an Android 5.0 (API 21)+ emulator or device
Internet connection (required for CometChat services)

Platform Requirements

iOS

Update your Podfile and set the iOS platform to 13.0 or higher:

platform :ios, '13.0'

Android

Change the ndkVersion and minSdk in your android/app/build.gradle.kts:

android {
    // Other Settings
    ndkVersion = "27.0.12077973"

    defaultConfig {
        // Other Settings
        minSdk = 24
    }
}

Complete Integration Workflow

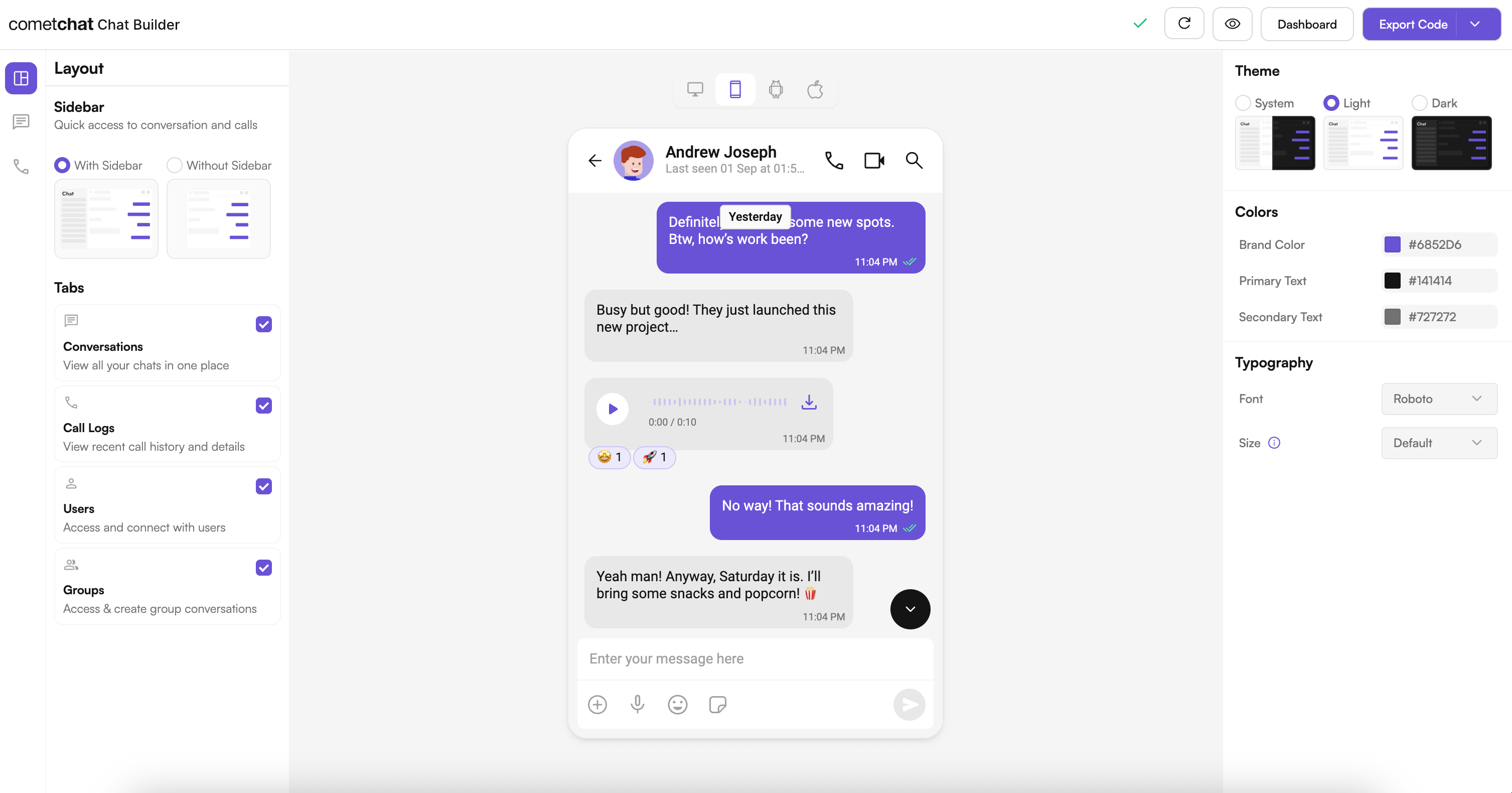

Design Your Chat Experience - Use the UI Kit Builder to customize layouts, features, and styling.
Review and Export - Review which features will be enabled in your Dashboard, toggle them on/off, and download the generated code package.
Preview Customizations - Optionally, preview the chat experience before integrating it into your project.
Integration - Integrate into your existing application using the Module Import method.
Customize Further - Explore advanced customization options to tailor the chat experience.

Launch the UI Kit Builder

Log in to your CometChat Dashboard.
Select your application from the list.
Navigate to Integrate → Flutter → Launch UI Kit Builder.

Integration with CometChat UI Kit Builder

Follow these steps to wire the Builder output into your existing Flutter app.

Step 1: Download the Builder Package

Download the Chat Builder app from the CometChat Dashboard. Inside you will find a chat_builder module, assets, and helper utilities.

Step 2: Add the Builder Module to Your Project

Copy the chat_builder project directory and paste it in your app’s root directory (next to your lib, ios, and android folders).

Step 3: Copy Builder Assets

Copy all the contents from the assets directory of the chat_builder and add it to your project assets:

Source: chat_builder/assets/
Destination: assets/

Keep the folder structure intact so fonts, JSON files, and images resolve correctly.

Step 4: Update `pubspec.yaml`

Point to the local Builder module and register the assets and fonts supplied by the export:

dependencies:
  # other dependencies
  chat_builder:
    path: ./chat_builder

flutter:
  uses-material-design: true
  assets:
    - assets/
    - assets/sample_app/
  fonts:
    - family: arial
      fonts:
        - asset: assets/fonts/arial_regular.ttf
        - asset: assets/fonts/arial_medium.ttf
        - asset: assets/fonts/arial_bold.ttf
    - family: inter
      fonts:
        - asset: assets/fonts/inter_regular.otf
        - asset: assets/fonts/inter_medium.otf
        - asset: assets/fonts/inter_bold.otf
    - family: roboto
      fonts:
        - asset: assets/fonts/roboto_regular.ttf
        - asset: assets/fonts/roboto_medium.ttf
        - asset: assets/fonts/roboto_bold.ttf
    - family: times New Roman
      fonts:
        - asset: assets/fonts/times_new_roman_regular.ttf
        - asset: assets/fonts/times_new_roman_medium.otf
        - asset: assets/fonts/times_new_roman_bold.otf

Ensure indentation is consistent—Flutter’s asset and font declarations are whitespace sensitive.

Step 5: Install Dependencies

Run the following commands at the root of your project:

flutter pub get
cd ios && pod install

Step 6: Initialize Builder Settings

In the main file of your project, add the following lines before runApp():

import 'package:flutter/widgets.dart';
import 'package:chat_builder/utils/builder_settings_helper.dart';

Future<void> main() async {
  WidgetsFlutterBinding.ensureInitialized();
  await BuilderSettingsHelper.loadFromAsset();
  runApp(const MyApp());
}

This ensures generated constants, themes, and resources are ready when your widgets build.

Step 7: Authenticate Your User

The exported module uses the standard CometChat Flutter UI Kit underneath, so the SDK must be initialized and a user logged in before chat screens can load. The Builder reads your APP_ID, AUTH_KEY, and REGION from chat_builder/lib/utils/app_constants.dart (see Directory Structure). You have two ways to get a logged-in user:

Let the Builder handle login. ChatBuilder.launchBuilder(context) opens the Builder’s own flow, which includes a login screen when no user is signed in (see Step 8). This is the fastest path for prototyping.
Authenticate from your own app. If your app already manages users, initialize and log in with the standard UI Kit APIs before opening the chat screens directly.

For development you can log in with an Auth Key:

CometChatUIKit.login(
  "cometchat-uid-1", // Replace with a valid UID
  onSuccess: (user) {
    debugPrint('CometChat login success');
  },
  onError: (error) {
    debugPrint('CometChat login error');
  },
);

Auth Key login is intended for development only. For production, mint an Auth Token on your server and call CometChatUIKit.loginWithAuthToken() instead, so your Auth Key is never shipped in the client. See Login using Auth Token.

For the full initialization and login reference, see Getting Started and Methods.

Step 8: Launch UI Kit Builder Screens

Use the ChatBuilder APIs to open preconfigured experiences. If CometChat is not initialized or user is not logged in:

import 'package:chat_builder/chat_builder.dart';

ChatBuilder.launchBuilder(context);

If CometChat is initialized and user is logged in: Open Messages screen for a User:

ChatBuilder.launchMessages(
  context: context,
  user: user, // instance of CometChatUser
);

Open Messages screen for a Group:

ChatBuilder.launchMessages(
  context: context,
  group: group, // instance of CometChatGroup
);

Step 9: Refresh Settings After Updates

Whenever you export a new Builder configuration, replace the generated JSON, fonts, and assets in your project, then rerun flutter pub get to pick up changes.

Light & Dark Theme

The Builder exports a theme value in cometchat-builder-settings.json that controls the chat UI’s appearance:

Value	Behavior
`'light'`	Always renders the light theme
`'dark'`	Always renders the dark theme
`'system'`	Follows the device’s light/dark setting

To switch modes, change the theme value in the exported settings JSON (or pick it in the Builder and re-export), then rerun flutter pub get. Brand and text colors for each mode are configured alongside it. See UI Kit Builder Settings → Style for the full color and typography schema. For theming beyond what the Builder exposes—custom color palettes, typography, spacing tokens, and ThemeExtension—use the UI Kit’s theming system directly. See Theming.

Enable Features in CometChat Dashboard

If your app needs any of these features, enable them from your Dashboard:

Stickers
Polls
Collaborative whiteboard
Collaborative document
Message translation
AI User Copilot: Conversation starter, Conversation summary, Smart reply

How to enable:

Log in to the Dashboard.
Select your app.
Navigate to Chat → Features.
Toggle ON the required features and Save.

Important Guidelines for Changes

Functional Changes: For enabling or disabling features and adjusting configurations, update the BuilderSettingsHelper or modify the configuration JSON. This controls all feature flags and configuration constants.

UI and Theme-related Changes: For any updates related to UI, such as colors, fonts, and styles, modify the theme configuration in the Builder or update the pubspec.yaml font definitions.

Troubleshooting

Builder Package Not Found

Confirm the chat_builder directory path in pubspec.yaml is correct
Ensure the module is at the root level of your project

Assets Missing at Runtime

Verify the asset paths in pubspec.yaml
Rerun flutter pub get after any changes

iOS Build Issues

Make sure you ran pod install inside the ios directory after adding the new dependency
Check that the iOS platform version in Podfile is 13.0 or higher

Undefined Symbols

Reimport or regenerate the BuilderSettingsHelper if package paths changed
Clean and rebuild: flutter clean && flutter pub get

Next Steps

Builder Settings

Understand the settings file and feature toggles.

Customizations

Adjust component props, behavior, and UI elements.

Directory Structure

See how the exported code is organized.

UI Kit Theme

Customize colors, typography, and styling to match your brand.

Message Templates

Customize message bubble content, headers, footers, and status views.

Component View Slots

Replace specific regions of a component’s UI with your own views.
